Single Phase EMI Power Filter IP40 250VDC For Coffee Equipment
Single Phase UL1283 IP40 250VDC EMI Power Filter
YB11B6-6A Fast On IEC Emi Power Filter with Switch for Coffee
Equipment
Technical Specification of EMI fiter
| Item | Emi Power Filter |
| Model | Emi Power Filter YB-B6 |
| Transfer Function | Low Pass |
| Package Type | Surface Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 60~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 115/250V |
| Rated Current | 1A 3A 6A 10A |
| Environmental Temperature | 40°C |
| Temperature Range | 25 / 085 / 21 |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 115VAC/50HZ 0.3uA Max |
| MOQ | 1000pcs |
| Price | Negotiable |
| Lead Time | 5~15 weekday |

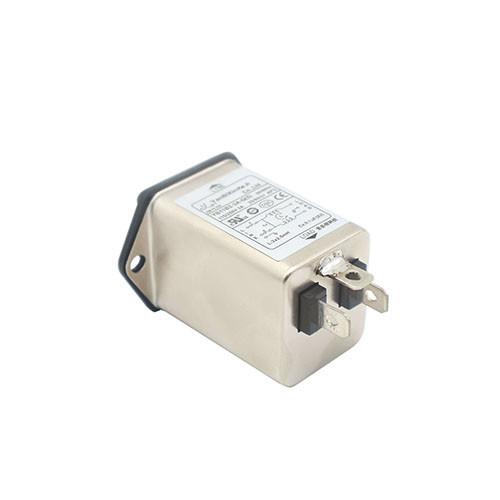

Product Photos
Typical Applications of EMI fiter
1. Portable electrical and electronic equipment;
2. Medical equipment;
3. Test and measurement equipment;
4. Small and medium-sized machines and household equipment
5. Single-phase power supply,switch-mode power supply
Rule of Nomination of EMI fiter
YB 11 B6 - 10A - Q ( R 5 G )
¦ ¦ ¦ ¦ ¦ ¦ ¦
circuit case current connection optional
Tabulates of EMI fiter
| Model No. | Rated Current
@40°C
| Terminal Options* | Bleeder resistor(optional) |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) | | |  |  |  | | YB11B6-1A | 1A | Q | S | - | - | - | <0.8mA | Fig.1 | 115/250V | 50/60Hz | | YB11B6-2A | 2A | Q | S | - | - | - | Fig.1 | | YB11B6-3A | 3A | Q | S | - | - | - | Fig.1 | | YB11B6-4A | 4A | Q | S | - | - | - | Fig.1 | | YB11B6-6A | 6A | Q | S | - | - | - | Fig.1 | | YB11B6-8A | 8A | Q | S | - | - | - | Fig.1 | | YB11B6-10A | 10A | Q | S | - | - | - | Fig.1 |
|
Medical Type Tabulates of EMI fiter
| Model No. | Rated Current
@40°C
| Terminal Options | Bleeder resistor(optional)(MΩ) | Medical equipment
5 |
G | Leakage current 250V/50Hz | Electrical Schematic
| Rated Voltage(V) | Operating Frequency(Hz) | | |  |  | | | YB11B6-1A-x(R5) | 1A | Q | S | - | 1 | 5 | - | <5μA | Fig.3 | 115/250V | 50/60Hz | | YB11B6-2A-x(R5) | 2A | Q | S | - | 1 | 5 | - | Fig.3 | | YB11B6-3A-x(R5) | 3A | Q | S | - | 1 | 5 | - | Fig.3 | | YB11B6-4A-x(R5) | 4A | Q | S | - | 1 | 5 | - | Fig.3 | | YB11B6-6A-x(R5) | 6A | Q | S | - | 1 | 5 | - | Fig.3 | | YB11B6-8A-x(R5) | 8A | Q | S | - | 1 | 5 | - | Fig.3 | | YB11B6-10A-x(R5) | 10A | Q | S | - | 1 | 5 | - | Fig.3 |
|
*Q: Fast-on 6.35x0.8mm
S: solder 4.0x0.8mm
W: UL1015 18awg
Electrical schematic of EMI fiter
Fig.1
Standard type
Fig.2
R5 type
Fig.3
Lg type
Mechanical Dimension(Unit: mm) of EMI fiter
| Case | A | B | C | D | E | F | G | H | I | J | K |
|
| B6 | 58 | 42.5 | 28.5 | 60 | 51 | 30.5 | 13 | 11 | 12.5 | 3.5 | 6.35*0.8 |
|
Tolerances
公差 | ±1 | ±1 | ±1 | ±1 | ±0.15 | ±1 | ±0.5 | ±0.5 | ±0.5 | ±1 | ±0.15 |
|
Insertion loss table(In 50ohm system according IEC/CISPR No.17) of EMI fiter
Common mode -------- differential mode
1A
3A
6A
8A
10A
Fig.2
