YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances

Product Categories

Shenzhen Yanbixin Technology Co., Ltd.

Trust Seal

Verified Supplier

Credit Check

Supplier Assessment

Contact Now

YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances

Brand Name : YBX

Model Number : YB27T5-4A-W(1)

Certification : CQC CE CB TUV ROHSE

Place of Origin : China

MOQ : 200pcs

Price : Negotiable

Payment Terms : T/T, L/C

Supply Ability : 60000 Pieces/month

Delivery Time : 5-8 work day

Packaging Details : 56.5*28.5*22.5cm

Product name : YB27T5 black plastic EMI filter

Application : Home appliacne

Insertion loss : 30-100dB

Transfer function : Low Pass

Nominal center frequency : 10KHZ~30MHZ

Package type : Surface Mount

Contact Now

YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances

Product Features:

1. Low leakage, high security and reliability.

2. Plastic cover, easy to install.

3. Especially designed for household electric appliances, with high performance/price ratio.

Technical Specification:

Item	Black Plastic Housing EMI Filter
Model	YB27T5-4A-W
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	115V/250V
Rated Current	1~16A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	500VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.8mA Max

Features:

-- Rated currents from 1 to 10A

-- General purpose filtering performance

-- Optional medical versions((R5) type)

-- Customized products according to customer's requirements.

Typical Applications:

-- Electrical and electronic equipment

-- Medical equipment

-- Datacom equipment

-- Office automation equipment

Filter Selection Table:

Part No.	Case	Rated Currents (A)	Output Connections
YB27T5-1A	T5	1	Fast-on terminal
YB27T5-4A	T5	4	Fast-on terminal
YB27T5-8A	T5	8	M4/M6/M8 Screw
YB27T5-10A	T5	10	M4/M6/M8 Screw
YB27T5-16A	T5	16	Wire

*Q: Fast-on 6.35x0.8mm S: Screw lug W: UL1015 18awg

Tabulates:

Model No.	Rated Current @40°C	Terminal Options			Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage(V)	Operating Frequency(Hz)
		Terminal Options

YB21T5-1A	1A	Q	-	W	<0.8mA	Fig.1	115/250V	50/60Hz
YB21T5-4A	4A	Q	-	W		Fig.1
YB21T6-10A	10A	Q	-	W		Fig.1
YB27T5-1A	1A	Q	-	W		Fig.1
YB27T5-4A	4A	Q	-	W		Fig.1
YB27T6-1A	1A	Q	-	W		Fig.1
YB27T6-4A	4A	Q	-	W		Fig.1
YB27T6-6A	6A	Q	-	W		Fig.1

Electrical Schematic & Mechanical Dimension(Unit: mm)

YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances

YB27T5-4A-W EMI Filter Picture:

YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances

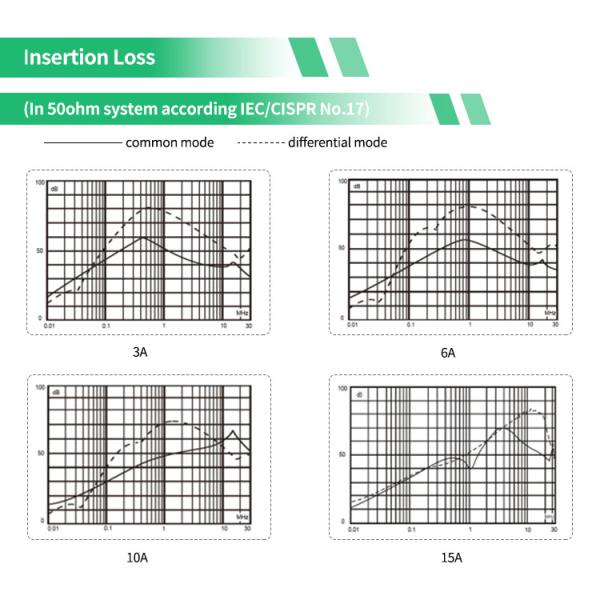

Insertion loss table(In 50ohm system according IEC/CISPR No.17)

YB27T5 Black Plastic Housing EMI Filter Wire Lead Output 4A Power Filter For Home Appliances
