YX84G2-10A-S Three Phase Three Wire EMI Filters For Frequency
Converters
1.Product Description
| Item Name/Product Name | Three Phase EMI Filter |
| Model | YX84G2-10A-SL |
| Transfer Function | Low Pass |
| Package Type | Surface Mount/Bolts Mount |
| Nominal Center Frequency | 10K-30MHZ |
| Insertion Loss | 30~90dB |
| Input Impedance | 50Ω |
| Rated Voltage | 380V/440V |
| Rated Current | 1~50A |
| Environmental Temperature | 40°C |
| Temperature Range | -25℃~+85℃ |
| Operating Frequency | 50/60HZ |
| Line to Line | 1450VDC |
| Line to Ground | 2250VDC |
| Maximum Leakage Current | 250VAC/60HZ 7mA Max |
| MOQ | 10pcs |
| Price | Ask customer service |
| Lead Time | 5~20 weekday |

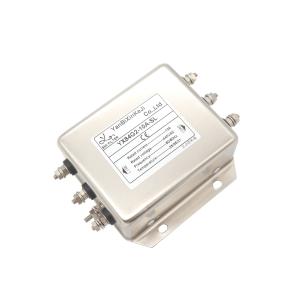

Product Picture:
Physical Dimensional:
Electrical Schematic:
2.Application
--LED lighting equipment
--Computer supporting equipment
--Financial equipment
--Testing and measuring instruments
--Household electrical equipment
--Fitness equipment
--Mechanical and electrical products
--Medical equipment
--Medical beauty instruments
--New energy vehicles
3.Certification
We have obtained ISO9001,CUL,TUV,CQC, CE, ROSH and other
certifications.
4. FAQ
Q1: Do you support custom products?
A: Yes, we can develop new mold at you need if you can provide us
with the samples or drawings and specification.
Q2: Are you a factory or a trader?
A: We are a manufacturer of EMI filters with 15 years of production
experience.
Q3: How long is the delivery time?
A: We ensure fast delivery. Generally, it will take 2-5 days for
samples; 10 to 15 for small orders, 15-25days for mass production
after receiving your advance payment. The specific delivery time
depends on the items and the quantity of your order. Please contact
us for details.
Q4: How about the payment terms?
A: We usually require T/T in advance. If the amount is more than
5000USD, we can do a 30% T/T deposit, a 70% T/T deposit before
shipment, and a balance against shipment. And we also accept the
L/C, Western Union, Paypal, etc.
Q5: What certifications do you have for your products?
A: We have certificates such as:ISO 9001, CE, TUV, UL, ROHS, ENEC,
REACH, etc.
